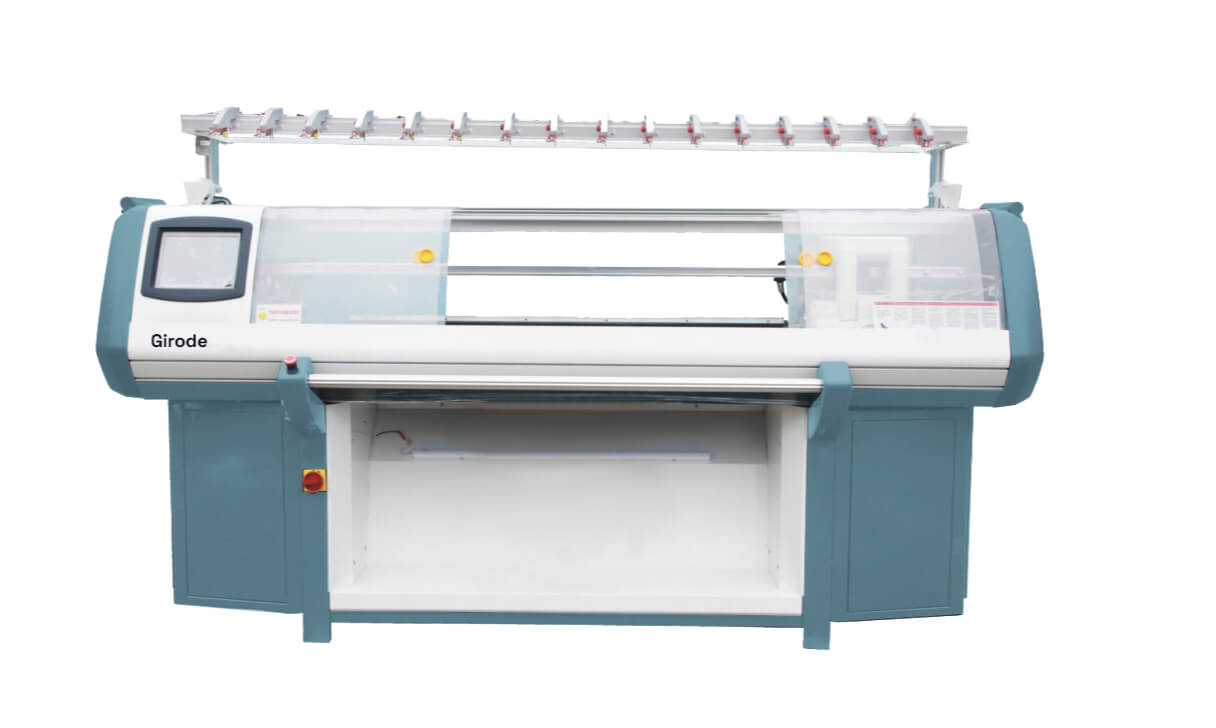

Computerized flat
knitting machines
Single carriage with single system
The advanced digital features of this model will boost your production efficiency by up to 15%, and will allow you to actualize any type of design you may think of applying tuck, pointel, transfer, hidden and apparent shapes, and many regular pattern knitting functions.
| Gauge | 5GG,7GG, 9GG, 10GG, 12GG, 14GG | ||
| Knitting speed | The maximum knitting speed achieved is 1,6 m/s. The servo motor can simultaneously control 32 speed sections | ||
| Protection system | The machine is equipped with a self-locking protection device and an accurate infrared system that will trigger an alarm and, when needed, disconnect the machine from the power supply in cases of threads or needle breakage, knots, knitting completion, needle hits, or other errors that can also be set and programmed by you, according to the specifics of your production. | ||
| Control system |
1.Adjustable LCD display 2.USB memory slot 3.Multi-language operation support |
||
| Network connection features | The machine features a network interface, allowing you to enable remote control and monitoring, as well as connect via the ERP system | ||
| Backup power supply | The machine’s backup power supply favors work continuity even in the case of power supply failures | ||
| Knitting system |
|
||
|
Knitting function- Functie de tricotat |
Knit, transfer, tuck, pointel, intarsia, jacquard, apparent shape, hidden shape, along with many regular or irregular knitting patterns | ||
| Racking | The process is controlled by servo-motor racking within 2 inches and features the fine adjustment function | ||
| Needle selection | Girode knitting machine presents an advanced encoder reading pin. The needle selection setup comprises 8 stages and is powered by an individual electromagnet, altogether forming one of the most efficient full width jacquard needle selector available on the market | ||
| Stitch density | The knitting process is conducted by a stepping motor, comprising 32 sections and having both stitch selection and scope adjustment featured, supported by the 0-650 subdivision technology, while also providing the possibility of meticulous control of the knitwear stitch | ||
| Transfer | The triangular composite design allows for an efficient stitch reversing | ||
| Take-down system | Girode flat knitting machines come with computer programming instructions, stepper motor control, and 32-stage tension requirements selection with an adjustable range between 0-100 | ||
| Color-changing system | Color changing is empowered by the 2*3 yarn feeders at each side of the 3 guide rails, all shiftable on any needle position | ||
| Unique features |
1.Suitability with any type of knitting items production; 2.Machine’s life cycle twice as long as any other brand’s on the market; 3.Improved stability and smooth user experience in production; 4. Wide availability of replacement parts on the market, hence no extra effort needed once machines’ elements are used to full capacity. |
||
| Voltage | 220V | Power | 1kw – 1.5kw |
Have a Question?
Knitted Sample
Inset Bed
The utility model identifies with a full-insert plate of a transverse knitting machine. It has a less sophisticated, basic structure, is pretty straightforward to exploit, has a more secure fixation of the knitting needle allowing for floating needle avoidance, and hence can successfully prevent the knitting needle from breaking.
Touch Screen
A very user-friendly control interface with a large memory capacity supports the storage of over 1000 patterns, while tens of thousands of lines of advanced patterns can also be read rapidly without pausing so that you do not spend time on waiting. Stable performance and execution make the machine much more comfortable, user-friendly, and simple to learn, understand, and use.
Yarn Carrier
The weaving system allows for up to 16 yarns usage. The yarns can be swapped to any position. The control software assures the adjustment of the knitting speed as well as automatic regulation of the yarn nozzle.
Yarn Storage Device
Yarn storage gadget located between the yarn spool and weaving system is fully programmed, automatic and high-productive.This shortens considerably the transfer of yarns to and from the storage. Furthermore, the function permits a fast and successful recognition of a broken yarn and launches a timely alert, guaranteeing a smooth task performance.
Side Tensioner
The side tensioner is the final yarn pressure regulator. As long as the yarn is moving, the side tensioner can screen the yarn and give a specific pressure to the yarn. Simultaneously, it can likewise withdraw free yarn brought about in the weaving process by different reasons such as head reversing or any other.
Infrared Probe Alarm Device
The infrared probe alarm device is a definite breakthrough among the qualities of the high-quality flat knitting machines, where the probe simply swings from one side to another in order to accomplish its detection function. The gadget performs the identification function to ensure safety and effectiveness of the knitting process, to prevent loose needles operation and damaged knitting fabric, and to enhance the output quality along with process productivity and efficiency.
